Accelerometers

General Purpose Monitoring

Monitran General Purpose Monitoring Sensors are for use with PLC’s and other industrial controllers to provide the user with a continuous output of vibration usually as a 4-20mA signal. Changes in the monitor signal will allow the user to spot vibration changes in the part of the machine to which the sensor is attached. Rapid changes accompany such conditions as machinery working loose from its mountings, fan blade malfunction, bearing failure all of which require immediate attention and machine shutdown to avoid widespread damage and loss of machine time. If the signal is logged at regular intervals, gradually increasing vibration indicates wear in the part of the machine where the sensor is fitted calling for replacement or detailed study with a portable vibration analyser.

This type of information is required in a wide range of environments so while the basic output is common to all sensors in this category there are many variations allowing them to be used in those different environments ranging from:

  • standard industrial conditions
  • submersible and long term wet operation
  • approved under ATEX, IECEx and ANZEx for use in hazardous areas

Two series are available: our long-standing, tried and trusted 1185 and 1187 ranges and the newly available 2285 and 2287 range with enhanced performance for more demanding applications. 2285 and 2287 series sensors feature redesigned electronics plus an internal Faraday shield giving:

  • much reduced noise and interference in real industrial environments
  • improved isolation and easier connection

MTN/1185, C

MTN/1185 vibration transducer General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments.
Sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes 3-pin 62GB connector, 2-pin MS connector or integral stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/1185C  MTN/1185

MTN/1185I, C

MTN/1185I hazardous area velocity transducerATEX and IECEx Group I & II certified. General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments.
Sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral stainless overbraided ETFE cable and is available with a wide range of mountings.

MTN/M1185IC  MTN/1185IC

MTN/1185W

MTN/1185W waterproof velocity sensorSubmersible, general purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/1185W

MTN/1185IW

MTN/1185IW hazardous area waterproof velocity transducerATEX and IECEx Group I & II certified. Submersible, general purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for long term vibration analysis in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/M1185IW MTN/1185IW

MTN/1187, C

MTN/1187 vibration sensorGeneral purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments.
Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes 3-pin 62GB connector, 2-pin MS connector or integral stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/1187C  MTN/1187

MTN/1187W

MTN/1187W waterproof vibration sensorGeneral purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments.
Sealed to IP68 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/1187W

MTN/1187IC

MTN/1187IC hazardous area velocity sensorATEX and IECEx Group I & II certified. General purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments.

Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/M1187IC MTN/1187IC

MTN/1187IW

MTN/1187IW hazardous area velocity transducerATEX and IECEx Group II certified. Submersible, general purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/1187IW

MTN/2285-2P, 4P, 4PZ, C

MTN/2285 velocity sensorGeneral purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes 2-pin MS connector, 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2285C MTN/2285-4PZ MTN/2285-4P  MTN/2285-2P

MTN/2285I-2P, 4P, C

MTN/2285I hazardous area velocity transducerATEX and IECEx Group I & II certified. General purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.
Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes 2-pin MS connector, 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/M2285IC  MTN/2285IC  MTN/2285I-4P  MTN/2285I-2P

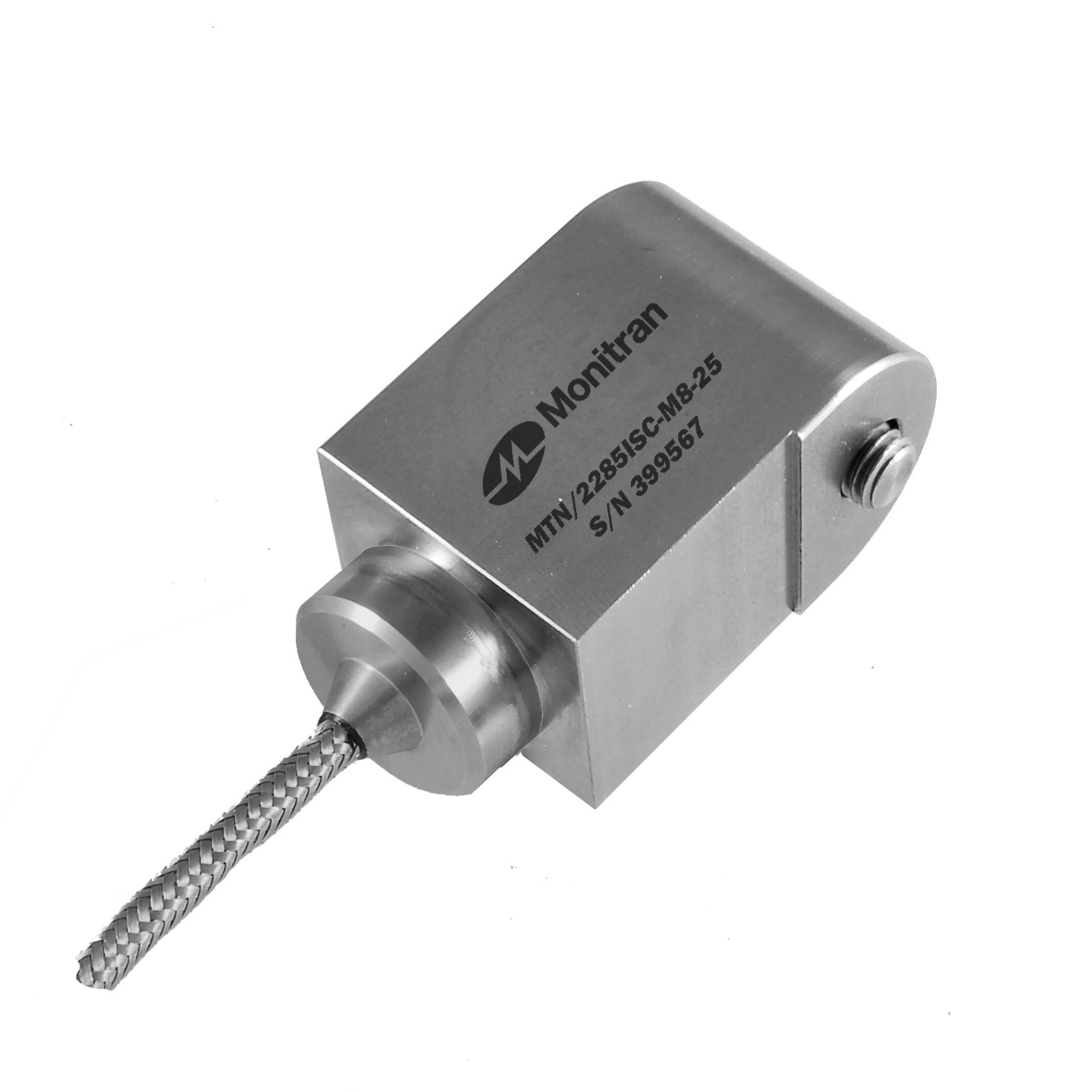

MTN/2285IS-2P, 4P, C

MTN/2285I hazardous area velocity transducerATEX and IECEx Group I & II certified. General purpose, side-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.
Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes 2-pin MS connector, 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2285ISC  MTN/2285IS-4P  MTN/2285IS-2P

MTN/2285W

MTN/2285W waterproof velocity sensorSubmersible, general purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh underwater environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.
Sealed to IP68 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/2285W

MTN/2285IW

MTN/2285IW hazardous area waterproof velocity transducerATEX and IECEx Group II certified. Submersible, general purpose, top-entry velocity transducer with DC output. Made from robust stainless steel throughout for continuous vibration monitoring in harsh underwater environments and areas with constant moisture or condensation. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

Sealed to IP68 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.
Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/2285IW

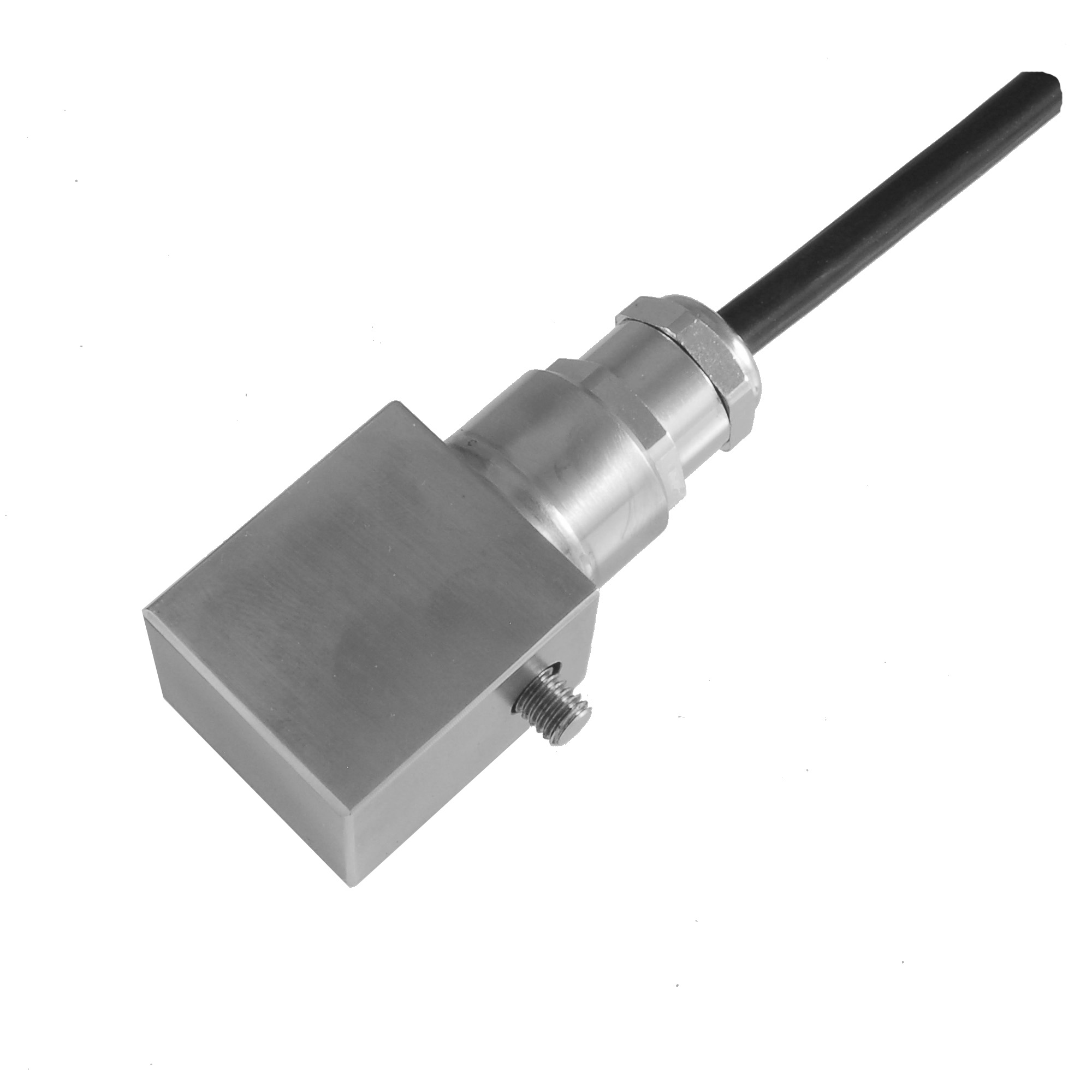

MTN/2285ISW

MTN/2285IW hazardous area waterproof velocity transducerATEX and IECEx Group II certified. Submersible, general purpose, side-entry accelerometer with DC output
proportional to velocity. Made from robust stainless steel throughout for continuous vibration monitoring in
harsh underwater environments and areas with constant moisture or condensation. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

Sealed to IP68 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes integral heavy duty polyurethane cable and is available with a wide range of mountings

MTN/2285ISW

MTN/2287-2P, 4P, C

MTN/2287 velocity transducerGeneral purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes 2-pin MS connector, 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2287C  MTN/2287-4P  MTN/2287-2P

MTN/2287I-2P, 4P, C

MTN/2287I hazardous area velocity sensorATEX and IECEx Group I & II certified. General purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.

Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes 2-pin MS connector, 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/M2287IC    MTN/2287IC  MTN/2287I-4P  MTN/2287I-2P

MTN/2287W

MTN/2287W waterproof sensorGeneral purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.
Sealed to IP68 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/2287W

MTN/2287IW

MTN/2287IW hazardous area waterproof transducerATEX and IECEx Group II certified. Submersible, general purpose, top-entry accelerometer with DC output proportional to acceleration. Made from robust stainless steel throughout for continuous vibration monitoring in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers.

Includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/2287IW
