Accelerometers

Special Purpose

Monitran Special Purpose Sensors extend the range of vibration analysis and monitoring tasks that can be undertaken by modifying the design or sensor type. Thus, models can be selected that can:

  • work at more elevated temperatures
  • work at lower frequencies
  • measure different vibration parameters
  • permit simultaneous measurement of temperature
  • permit more than one vibration parameter to be measured simultaneously by the same sensor

Monitran has a wide range of special sensors many of which can be found in the categories on the left. Monitran’s bespoke design capabilities can be called on to provide almost any combination of sensor style, operating environment and output or combined outputs.

MTN/1010

MTN/1010 accelerometerGeneral purpose, top-entry, constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Includes 25mm base, integral TNC connector and available with a wide range of mountings. Uses coaxial cable (not twin core shielded like the 1100 which also has internal shielding and isolated electronics) and thus shows lower immunity to electrical interference.

MTN/1010

MTN/1020

MTN/1020 accelerometerGeneral purpose, top-entry, constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Includes 19mm base, integral TNC connector and available with a wide range of mountings. Smaller and lighter than MTN/1010. Uses coaxial cable (not twin core shielded like the 1100 which also has internal shielding and isolated electronics) and thus shows lower immunity to electrical interference.

MTN/1020

MTN/1100T, C

MTN/1100 dual-purpose sensorDual purpose, top-entry, constant current accelerometer with isolated AC(g)  and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments.
Sealed to IP67 and includes 62GB 3-pin connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/1100TC  MTN/1100T

MTN/1105CE

MTN/1105CE vibration sensorTop-entry, constant current accelerometer for vibration analysis at elevated temperatures. Made from robust stainless steel throughout for long term analysis in harsh environments and up to 250ºC surface temperature; as the sensor head contains no electronics. An in-line charge amplifier connected with extra high-temperature cable (265ºC) can be located 5 metres from the heat source where temperatures are 120ºC or less.

MTN/1105C

MTN/1105SCE

MTN/1105SCE side entry vibration sensorSide-entry, constant current accelerometer for vibration analysis at elevated temperatures. Made from robust stainless steel throughout for long term analysis in harsh environments and up to 250ºC surface temperature; as the sensor head contains no electronics. An in-line charge amplifier connected with extra high temperature cable (265ºC) can be located 5 metres from the heat source where temperatures are 120ºC or less.

Request details

MTN/1310

MTN/1310 accelerometerIdeally suited to any application where vibration in all three spatial axes needs to be measured, the MTN/1310 is supplied with an integral over-braided 4-core cable and three charge amplifiers encapsulated in a single die cast enclosure.

MTN/1310

MTN/1330

MTN/1330 accelerometerGeneral purpose top-entry constant current accelerometer with 3 isolated AC outputs (X,Y and Z axes) and a 4 pin M12 connector. Internal electronics are isolated to minimise noise with increased bias voltage stability. Ideal for any application where vibration in all three spatial axes needs to be measured.

MTN/1330

MTN/1600

MTN/1600General purpose accelerometer with isolated velocity output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Internal electronics are designed to reduce the
susceptibility of noise interference from Radio frequencies. Sealed to IP67 and includes 2-pin C5015 military style connector. Available with a wide range of mountings.

MTN/1600

MTN/2200T-4P, C

MTN/2200TGeneral purpose top-entry constant current accelerometer with isolated AC and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Internal electronics are isolated to minimise noise with increased bias voltage stability.
Sealed to IP67 and includes 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2200T-4P

MTN/2200IT-4P, C

MTN/2200ITATEX and IECEx Group II certified. General purpose top‐entry constant current accelerometer with isolated AC and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in
harsh, hazardous gas and dust environments. Internal electronics are isolated to minimise noise with increased bias voltage stability.
Sealed to IP67 and includes 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2200ITC  MTN/2200IT-4P

MTN/1100STC

MTN/1100STCDual purpose, side-entry, constant current accelerometer with isolated AC(g) and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments.
Sealed to IP67 and includes stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/1100STC

MTN/2200STC

MTN/2200STCDual purpose, side-entry constant current accelerometer with isolated AC and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Internal electronics are isolated to minimise noise with increased bias voltage stability.
Sealed to IP67 and includes stainless steel overbraided ETFE cable. Available with a wide range of mountings.

MTN/2200STC

MTN/1100TW

MTN/1100TWSubmersible, dual purpose, top-entry, constant current accelerometer with isolated AC(g) and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 and includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/1100TW

MTN/2200TW

MTN/2200TWSubmersible, dual purpose, top-entry, constant current accelerometer with isolated AC(g) and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh underwater environments and areas with constant moisture or condensation.
Sealed to IP68 and includes integral heavy duty polyurethane cable and is available with a wide range of mountings.

MTN/2200TW

MTN/2285IT-4P, C

MTN/2285ATEX and IECEx Group II certified. General purpose, top‐entry velocity transducer with DC and temperature outputs. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments.
Sealed to IP67 with industry standard two‐wire 4‐20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes 4-pin M12 connector or stainless steel overbraided ETFE cable and is available with a wide range of mountings.

MTN/2285ITC MTN/2285IT-4P

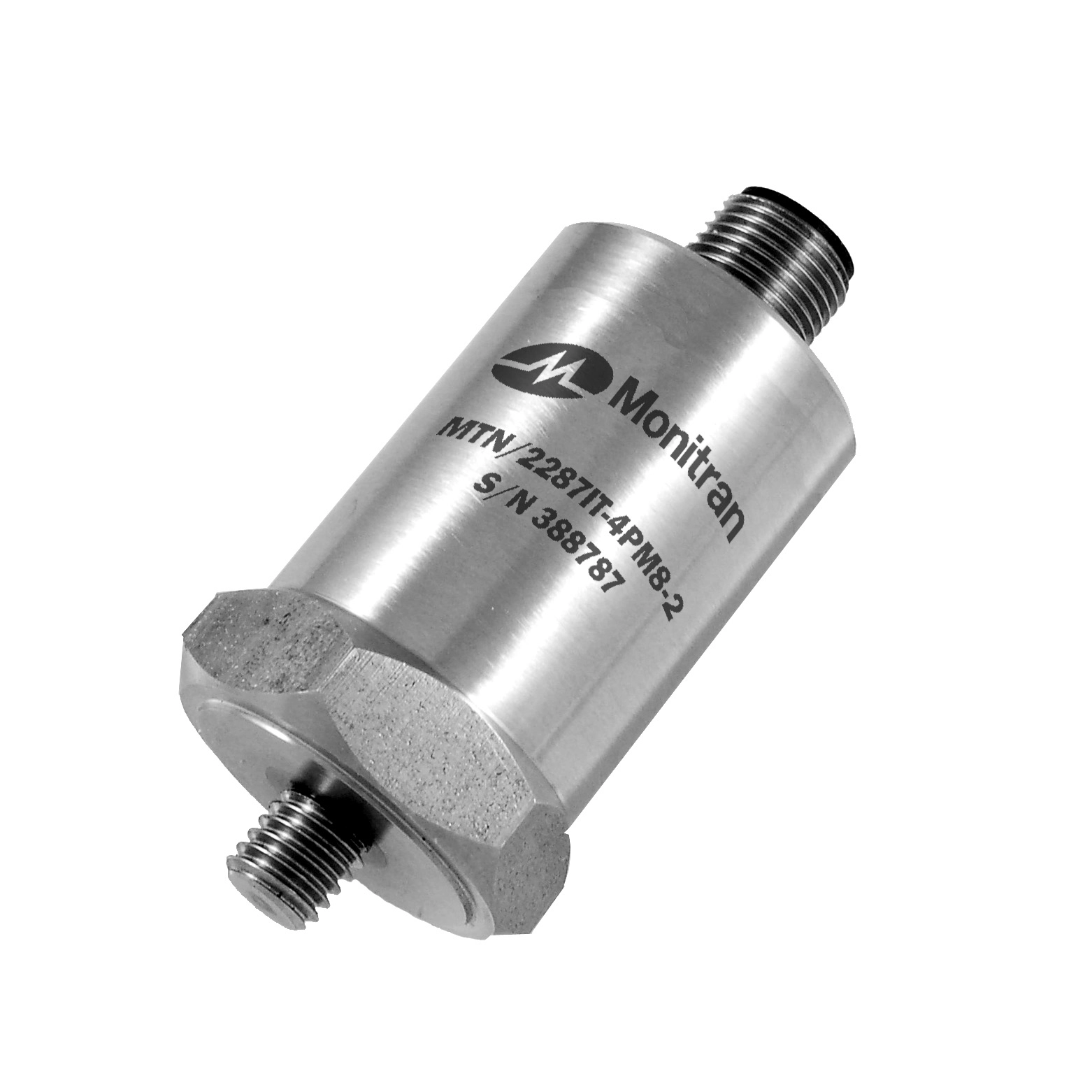

MTN/2287IT-4P

MTN/2285ATEX and IECEx ATEX and IECEx Group II certified. General purpose, top-entry accelerometer with DC output proportional to acceleration and temperature outputs. Made from robust stainless steel throughout for continuous vibration monitoring in harsh industrial environments. Internal electronics are enclosed in a Faraday cage and isolated to minimise noise.
Sealed to IP67 with industry standard two wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes 4-pin M12 connector and is available with a wide range of mountings.

MTN/2287IT-4P

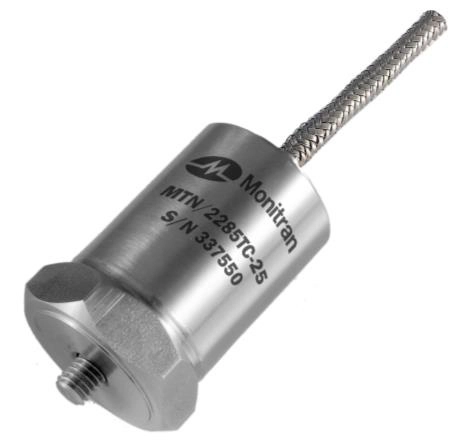

MTN/2285TC

MTN/2285STCDual purpose, top-entry, velocity transducer with DC and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments.
Sealed to IP65 and includes integral stainless overbraided ETFE cable and is
available with a wide range of mountings.

MTN/2285TC

MTN/2285STC

MTN/2285STCDual purpose, side-entry, velocity transducer with DC and temperature outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments.
Sealed to IP65 and includes stainless steel overbraided ETFE cable and ¼”-28 UNF, M6 or M8 mounting bolt.

MTN/2285STC

MTN/P Series

MTN/PCharge output accelerometers

MTN/P1100 MTN/P100 MTN/P50 MTN/P05

MTN/1170

MTN/1107Small footprint, general purpose, top-entry constant current accelerometer with an isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes 2-pin C5015 military style connector. Available with a wide range of mountings and 19mm diameter base.

MTN/1170

MTN/1120, C

MTN/1120Small footprint, general purpose, top-entry, constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes 3-pin 62GB style connector or stainless overbraided ETFE cable. Available with a wide range of mountings and 19mm diameter base.

MTN/1120C MTN/1120

MTN/1120SC

MTN/1120SCSmall footprint, general purpose, side-entry, constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes stainless overbraided ETFE cable. Available with a wide range of mountings and 19mm diameter base and 24mm high.

MTN/1120SC

MTN/1130

MTN/1130Small footprint, general purpose, top-entry constant current accelerometer with an isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Specially adapted for use on light weight, high speed machinery. Sealed to IP67 and includes integral stainless overbraided ETFE cable available with a wide range of mountings including quick release, swivel base. Ultra-slim 15mm body.

MTN/1130

MTN/1135C

MTN/1135CSmall footprint, general purpose, side-entry constant current accelerometer with an isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Specially adapted for use on light weight, high speed machinery. Includes Sealed to IP67 and includes integral stainless overbraided ETFE cable with quick release, swivel base. Ultra-slim 15mm body and only 25mm high, ideal for use in restricted areas.

MTN/1135C

MTN/1140

MTN/1140Small footprint, general purpose, top-entry constant current accelerometer with an isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Specially adapted for use on light weight, high speed machinery. Sealed to IP67 and includes integral stainless overbraided ETFE cable available with male, female and conical mountings. Ultra-slim 15mm body.

MTN/1140

MTN/1830SC

MTN/1830SCLow profile, general purpose, side-entry constant current accelerometer with isolated AC output. Made from robust stainless steel throughout for long term vibration analysis in harsh environments with restrictive access. Sealed to IP67 and includes stainless steel overbraided ETFE cable and ¼”, M6 or M8 mounting bolt.

MTN/1830SC

MTN/1186, C

MTN/1186Dual purpose, top-entry, accelerometer with 100mV/g AC and 4-20mA DC outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes 62GB 3-pin connector or integral stainless overbraided ETFE cable. Available with a wide range of mountings.

MTN/1186C MTN/1186

MTN/1186W

MTN/1186WSubmersible dual purpose, top-entry, accelerometer with 100mV/g AC and 4-20mA DC outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh underwater environments and areas with constant moisture or condensation. Sealed to IP68 and includes heavy duty polyurethane cable. Available with a wide range of mountings.

MTN/1186W

MTN/1188, C

MTN/1188CDual purpose, top-entry, accelerometer with 100mV/g AC and 4-20mA DC outputs. Made from robust stainless steel throughout for long term vibration analysis in harsh environments. Sealed to IP67 and includes 62GB 3-pin connector or integral stainless overbraided ETFE cable. Available with a wide range of mountings.

MTN/1188C MTN/1188

MTN/1700I

The MTN/1700I series wideband acoustic emission sensors are designed to provide signals to appropriately approved data-collector and used for monitoring the performance of large industrial control valves situated in hazardous areas. The sensor provides a high frequency acoustic emission signal, a dc voltage output proportional to temperature and a serial ident signal. The sensor has a robust cylinder stainless-steel body designed to fit control valves being monitored.

MTN/1700I
